The Photomedics BlueLight™ leads oral hygiene into a new era. The blue light emitted by this device suppresses the growth of pathogenic bacteria in the mouth that can cause gum disease, bad breath, cardiovascular disease, stroke, premature birth, low birth weight, and Alzheimer’s disease. Photomedics challenged Stream to embody their research into a simple device that is intuitive, elegant, delivers the light to the right area, and is manufacturable.

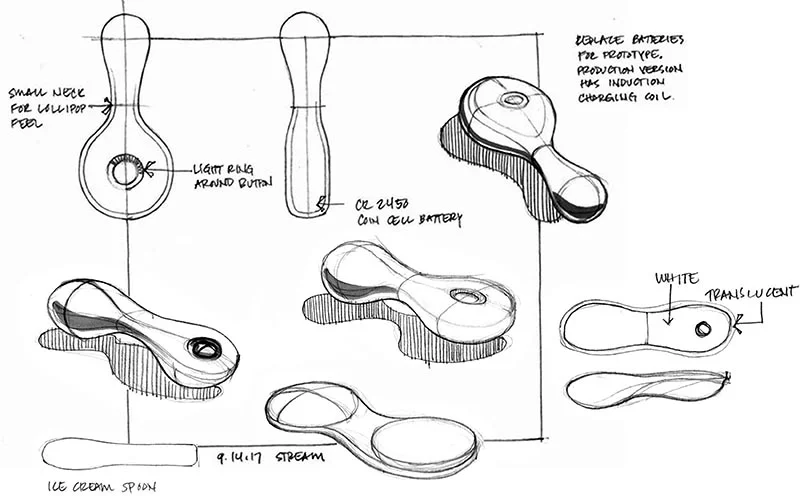

We created a lollipop of light. This simple analogy is universally understood from childhood, and is a playful way to deliver major therapeutic benefit. The form testifies to it's function, and you immediately and intuitively understand how to use it, simply place it between your tongue and the roof of your mouth. You can roll it around, close your lips around it and retain the saliva, making each treatment much more convenient. The soft shape of the body is simple and comfortable in your hand. The blue color on the home button makes it stand out as a control. All touch points are easy grip rubber- bite switch, home button and battery door. It is small, round and lightweight for maximum comfort while walking around during treatment.

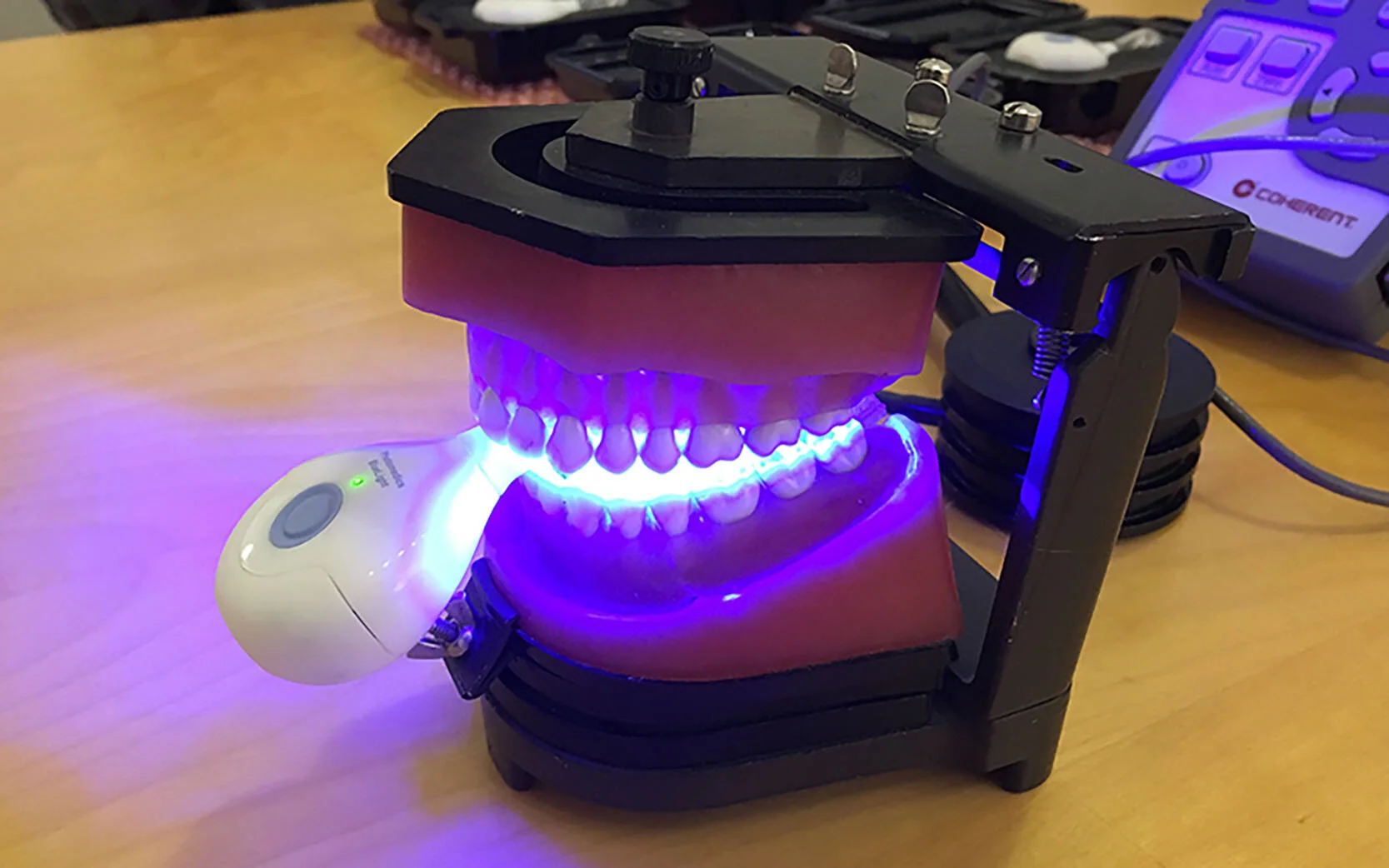

We created an omnidirectional light source with a unique internal structure for the LEDs and flex circuit in order to optimize the oral cavity's exposure to the light. The bite switch is located in the natural place for your teeth to activate it, which required creating innovative ways to strengthen and seal the area. We used materials that would not dampen the output of the light, and would be cost effective to manufacture. The entire device is battery operated and sealed for use in the mouth.

BUSINESS IMPACT

BlueLight is the first product for Photomedics and is the physical embodiment of two decades of research from the two founders, Dr. Nikos Soukos and Dr. Max Goodson. User feedback has been extremely positive; 100% of the initial 800 dental professionals and consumers around the world who have tried the device love it. Photomedics has deepened it’s product offering with a new wireless charger, also developed by Stream PD.

PROCESS

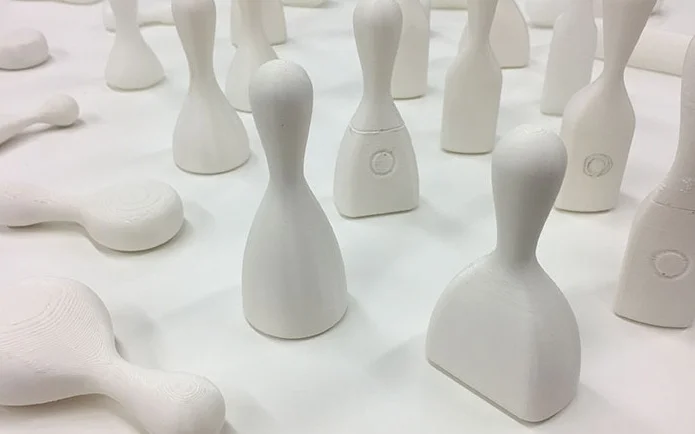

We created hundreds of models to ensure comfortable fit in the mouth and hand.

We proved the electrical feasibility of their research by engineering multiple prototype PCBs that delivered the dosage and intensity of light required, powered with a commonly available battery.

Learn more about the technology and the research behind it at photomedics.com

Press:

The Photomedics BlueLight has won a 2019 GOOD DESIGN® award for Design Excellence.

Porphyromonas Gingivalis found in the brain of patients with Alzheimer’s disease, Harvard Medical School, January 2019 Photomedics Bluelight kills the bacteria Porphyromonas Gingivalis.

The Forsyth Institute and Photomedics Inc. Announce the Development of an Intraoral Antibacterial Light Technology Device, February 2018

Device Uses Blue Light to Kill Oral Pathogens, May 2018, Dentistry Today

Light Blitzes Plaque, Feb 2006 Harvard Magazine

Mini Light Sabres May Battle Gum Disease, May 2005, New Scientist

BlueLight Suppresses Oral Pathogens, April 2005, Harvard Gazette

BlueLight May Fight Bacteria Associated with Periodontitis, April 2005, Journal of American Dentistry

Forsyth scientists find blue light fights gum disease culprits, March 2005, American Association for the Advancement of Science
